VMware Cloud Foundation 9.1.1 Private AI Services 3.0:From Zero to Qwen 2.5 and a Working VMware Intelligent Assist

September 11, 2026 - By admin

Can VMware Cloud Foundation run its own AI model, keep the inference inside the private cloud, and then use that model to answer real questions about the infrastructure?

That was the question I wanted to answer in my VCF 9.1.1 lab.

The answer is yes, but getting from “I have an NVIDIA GPU in an ESXi host” to “VMware Intelligent Assist is querying my vCenter through a local Qwen model” involves much more than deploying one Kubernetes pod.

In this article, we will build the entire stack from the ground up. We will prepare the GPU, create the VM and Namespace Classes, build the correct VCF Automation networking, install Private AI Services 3.0, prepare Regional Harbor, upload Qwen2.5-7B-Instruct, create a GPU-backed ModelEndpoint with vLLM, expose it through the PAIS OpenAI-compatible API, and finally connect it to VMware Intelligent Assist in VCF Operations.

This is deliberately written as a from-zero, click-by-click lab guide. I will not only show what to configure, but also explain what it does and what you should verify before moving to the next step.

What makes this lab interesting?

The final result is not a generic chatbot. The model runs on a physical NVIDIA GPU inside the VCF environment and VCF Operations can use it together with its own tools to retrieve live infrastructure data.

Before We Start: What Is PAIS Actually Building?

If this is your first contact with Private AI Services, it helps to understand the moving parts before opening any wizard.

There are five layers involved:

vSphere / GPU layer – the physical NVIDIA GPU is exposed through Dynamic DirectPath I/O.
VCF Automation/tenancy layer – the namespace, VPC, Transit Gateway connectivity, and resource quotas live here.
PAIS platform layer – Private AI Services creates and manages its own VKS cluster.
Model runtime layer – PAIS creates a dedicated GPU worker and runs Qwen using vLLM.

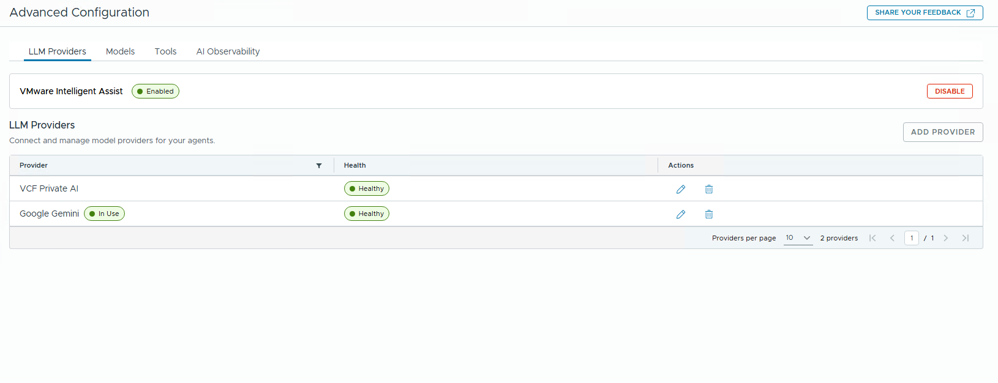

Consumer layer – VCF Operations connects to the PAIS endpoint, and VMware Intelligent Assist uses the model.

The final request path looks like this:

User
 |
 v

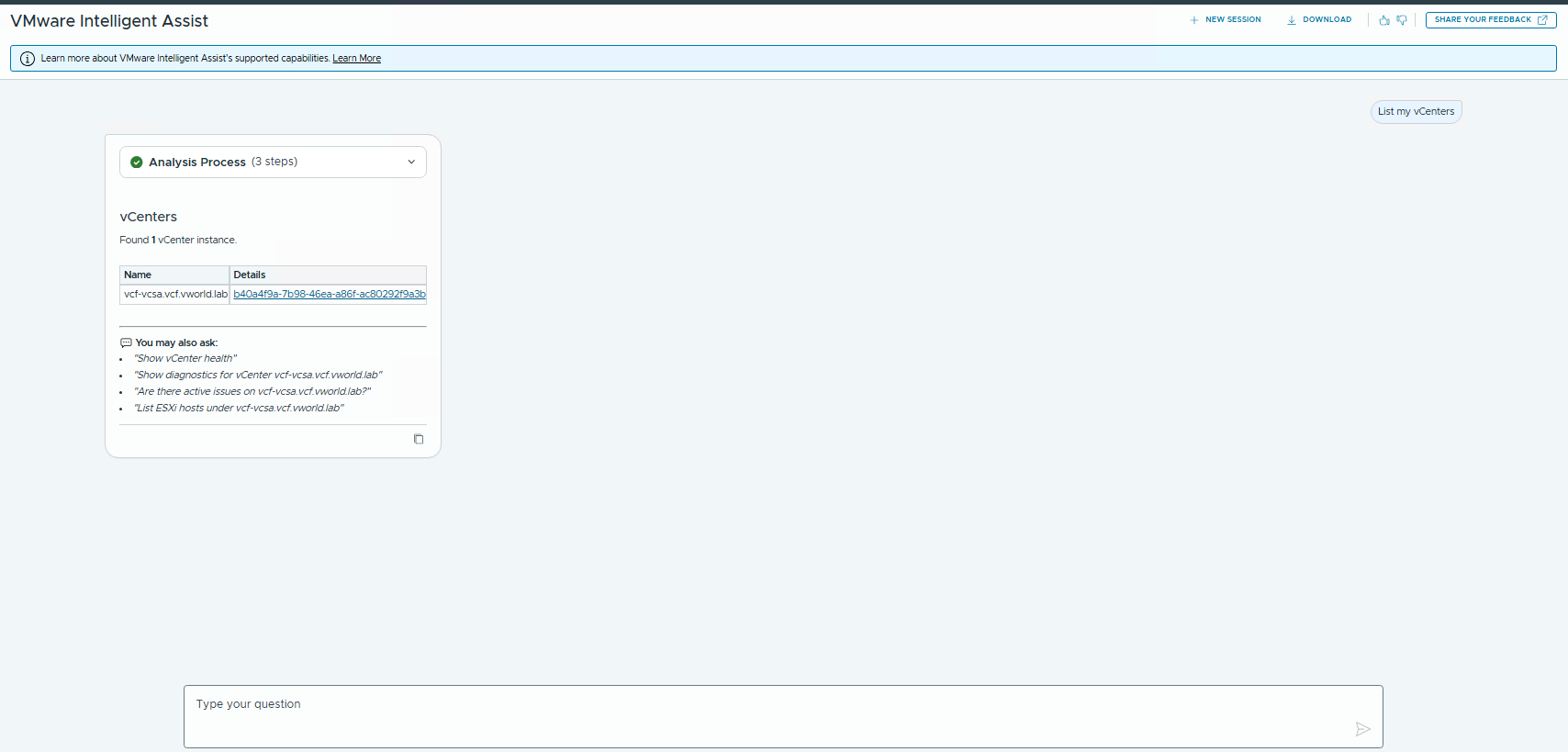

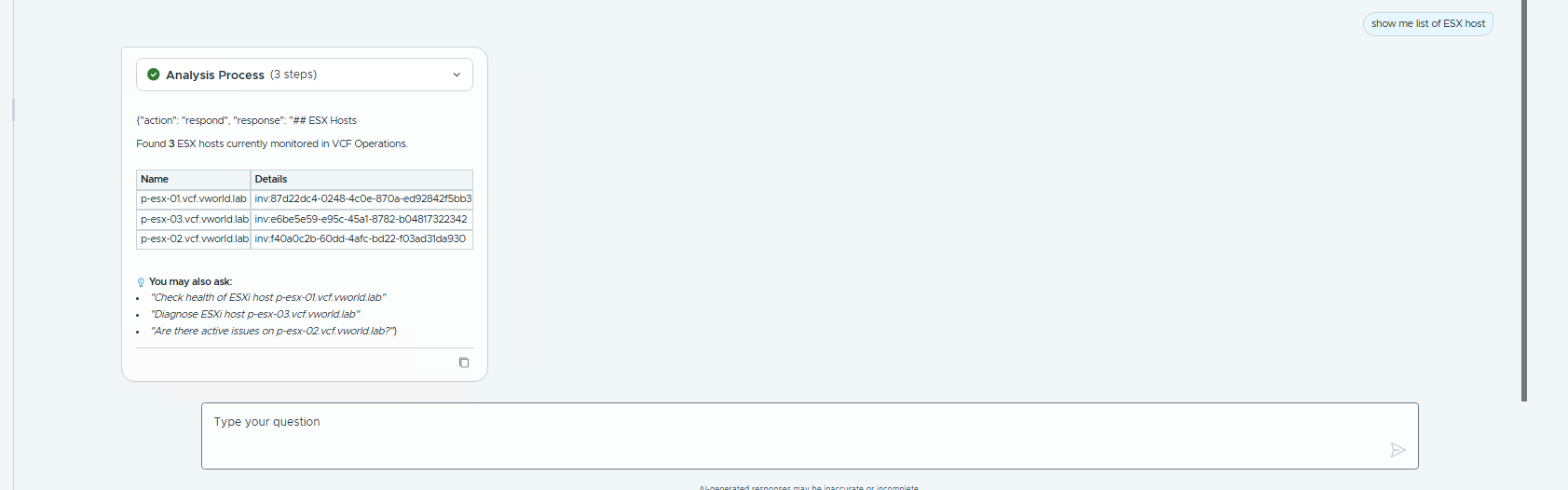

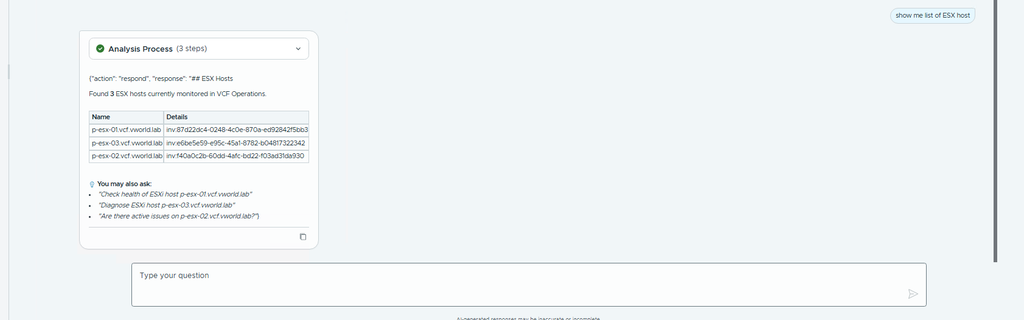

VMware Intelligent Assist
 |
 v
VCF Operations agent / tools
 |
 v
VCF Private AI LLM Provider
 |
 v
https://vcf-pais.vcf.vworld.lab
 |
 v
PAIS Ingress 40.40.40.2:443
 |
 v
Qwen2.5-7B-Instruct / vLLM
 |
 v
PAIS-managed VKS inference worker
 |
 v
small-gpu VM Class
 |
 v
NVIDIA RTX 4000 SFF Ada

The model files are not stored inside the ModelEndpoint itself. They live in Regional Harbor:

192.168.51.7/models/qwen/qwen2.5-7b-instruct:v2

The Lab Configuration

Before copying values from the screenshots, here is the complete working configuration so that the names and networks used later make sense.

Component	Working lab value
VCF	9.1.1
Private AI Services	3.0 / Model Runtime Only
Supervisor	`vcf-super`
PAIS Namespace	`vcf-pais-gmtqg`
Region	`test-region-auto`
Failure Domain / Zone	`domain-c9`
GPU	NVIDIA RTX 4000 SFF Ada Generation, 20 GB
GPU access	Dynamic DirectPath I/O
GPU VM Class	`small-gpu` – 8 vCPU / 32 GiB / 100% memory reservation
VKS Control Plane VM Class	`best-effort-xlarge`
Namespace Class	`pais-large`
PAIS VPC	`vpc-vcf-pais-72x7u8`
PAIS VPC CIDR	`172.55.0.0/24`
Private TGW Block	`pais-tgw / 172.60.0.0/16`
PodVM subnet	`172.60.0.0/27`
Connectivity Profile	`pais-connectivity-profile`
Outbound SNAT address	`40.40.40.1`
PAIS Ingress VIP	`40.40.40.2:443`
Child VKS API VIP	`40.40.40.3:6443`
Regional Harbor	`192.168.51.7:443`
Storage Class	`vworld-cl01-optimal-datastore-default-policy-autoraid`
Model	Qwen2.5-7B-Instruct
Runtime	vLLM

Do not treat these numbers as universal PAIS sizing.

These are the values that work in my lab. What is reusable is the architecture, the configuration sequence and the dependency chain.

Prerequisites

I assume that the basic VCF platform already exists. Before we begin, verify that you have:

a healthy VCF 9.1.1 deployment,
VCF Automation configured,
a vSphere Supervisor enabled with NSX VPC networking,
an operational NSX Edge Cluster and Provider Tier-0,
Avi integrated with the region,
working DNS and NTP,
a supported NVIDIA GPU installed in an ESXi host,
VCF Depot access with entitlement to PAIS 3.0 artifacts,
a storage policy that can be exposed as a Namespace Storage Class,
a Linux tools VM from which we can use Docker, Hugging Face CLI and VCF Consumption CLI.

If all of those are in place, we can start.

Part 1 – Turn the Physical GPU into a Resource PAIS Can Consume

Step 1 – Enable Dynamic DirectPath I/O

The first thing we need is not PAIS at all. We need to make the GPU assignable to a virtual machine.

Open the vSphere Client.
Go to Hosts and Clusters.
Select the ESXi host that physically contains the NVIDIA card.
Open Configure.
Under Hardware, open PCI Devices.
Locate the NVIDIA GPU. NVIDIA devices use a vendor ID 0x10DE.
Select the GPU PCI function required for passthrough.
Enable Passthrough / DirectPath I/O.
If vSphere requires a host reboot, perform the reboot and wait for the host to return to the Connected state.

Checkpoint: the NVIDIA device must be available for VM assignment before continuing.

Why not attach the GPU to the Supervisor control plane?

Because the control-plane nodes do not run model inference. PAIS creates a separate worker when a GPU-backed ModelEndpoint is deployed. That is the VM that needs the GPU.

Step 2 – Create the small-gpu VM Class

Now create a VM Class that describes the inference worker PAIS can build.

In the vSphere Client, open Supervisor Management.
Navigate to Services > VM Service > Manage > VM Classes.
Click CREATE VM CLASS.
Use the following values:

Field	Value
Name	`small-gpu`
vCPU	8
Memory	32 GiB
Memory Reservation	32768 MiB / 100%
PCI Device	NVIDIA RTX 4000 SFF Ada
Device Type	Dynamic DirectPath I/O
vGPU Profile	Not used

Save the VM Class.
Make it available to the Supervisor/Region that will host the PAIS namespace.

Checkpoint: small-gpu must be visible as an assignable VM Class.

We will later use best-effort-xlarge for the PAIS VKS control plane and small-gpu only for the ModelEndpoint worker.

Part 2 – Give PAIS Enough Namespace Capacity

Step 3 – Create the pais-large Namespace Class

This is one place where a beginner can easily miss an important concept. The Namespace Class is not the PAIS configuration itself. It is the resource envelope that defines what a namespace can consume.

Log in to VCF Automation.
Open Manage & Govern.
Open Namespace Classes.
Click NEW NAMESPACE CLASS.
Set the name to pais-large.
Configure:

Resource	Value
CPU Limit	150 GHz
CPU Reservation	10 GHz
Memory Limit	128 GB
Memory Reservation	64 GB
Storage	1 TB

Add best-effort-xlarge to the available VM Classes.
Add small-gpu.
Add vworld-cl01-optimal-datastore-default-policy-autoraid as the available Storage Class.
Save the Namespace Class.

Checkpoint: the class must expose both the regular VKS class and the GPU-enabled class.

Figure 1. The pais-large Namespace Class exposes both the regular VKS classes and the dedicated small-gpu class, together with the storage policy used by PAIS.

This is important because PAIS needs two very different kinds of compute from the same namespace: ordinary Kubernetes control-plane VMs and a dedicated GPU inference VM.

Part 3 – Understand the PAIS Network Before Configuring It

This section is worth reading even if your network already works, because PAIS uses two different private address spaces and they solve different problems.

The first network: the PAIS-managed VKS VPC

172.55.0.0/24

This is where the PAIS-managed Kubernetes nodes live, including the GPU inference worker.

The second network: the Private-TGW PodVM space

pais-tgw: 172.60.0.0/16
allocated pod-default: 172.60.0.0/27

This address space is used by infrastructure components that communicate through the Transit Gateway path.

And then we have three external-looking addresses

40.40.40.1 = outbound SNAT address
40.40.40.2 = PAIS ingress VIP
40.40.40.3 = PAIS-managed VKS API VIP

This distinction matters. 40.40.40.1 is not the PAIS web endpoint. It is the source address used for outbound connectivity.

Step 4 – Enable Provider Outbound SNAT

Open the VCF Automation provider/enterprise administration view.
Navigate to VPC Connectivity > External Connections.
Open the External Connection used by the organization/region.
Click Edit.
Open the advanced networking settings.
Enable Provider Outbound SNAT.
Select the external-app SNAT IP Block.
Save the External Connection.

Figure 2. The final External Connection configuration: Provider Outbound SNAT is enabled and the external-app SNAT IP Block is assigned.

The resulting infrastructure path should be:

PAIS PodVM 172.60.0.x
     |
     v
Transit Gateway
     |
     | SNAT
     v
40.40.40.1
     |
     v
Provider Tier-0

Step 5 – Verify the Private Transit Gateway Block

The block used in my lab is:

Name: pais-tgw
CIDR: 172.60.0.0/16

The PAIS namespace receives:

pod-default: 172.60.0.0/27

Step 6 – Verify the TGW NAT Rule

Once the namespace exists, verify that the Transit Gateway NAT rule has the expected values:

Setting	Value
Source	`172.60.0.0/27`
Destination	Any
Action	SNAT
Translated Address	`40.40.40.1`
Applied To	All Connections
Enabled	Yes

Figure 3. The Transit Gateway NAT rule for the PAIS pod-default Private-TGW subnet.

Step 7 – Add the External Firewall NAT

My VCF lab uses pfSense northbound of NSX. NSX translates the PAIS-managed VKS worker traffic from 172.55.0.x to 40.40.40.1. That means pfSense sees 40.40.40.1, not the original VKS source.

Log in to pfSense.
Open Firewall > NAT > Outbound.
Use Hybrid or Manual Outbound NAT mode if required.
Create a rule with Source 40.40.40.1/32.
Translate it to the WAN interface address.
In my lab, the WAN NAT address is 192.168.100.145.
Save the rule and click Apply Changes.

PAIS VKS worker 172.55.0.x
        |
        | NSX SNAT
        v
40.40.40.1
        |
        | pfSense Outbound NAT
        v
192.168.100.145
        |
        v
Internet

Why is Internet access needed?

In a connected deployment the PAIS-managed workers may need to reach NVIDIA, Broadcom/JFrog and Kubernetes-related repositories while the GPU software and model runtime are being prepared.

Do not NAT the whole 40.40.40.0/24 range.

In this design, 40.40.40.2 and 40.40.40.3 are service VIPs. Only 40.40.40.1 is the outbound SNAT address.

Part 4 – Install Private AI Services 3.0

Step 8 – Verify the Broadcom Registry Token

Before enabling the Supervisor Service, make sure the VCF Depot account is entitled to PAIS 3.0 and can obtain the required OCI registry token.

The important distinction is:

Broadcom account password != Broadcom Registry Token

PAIS runtime images are retrieved from Broadcom package infrastructure, including:

pais-docker.packages.broadcom.com

Step 9 – Register / Enable the PAIS Supervisor Service

Open the vSphere Client.
Navigate to Supervisor Management > Services.
Locate Private AI Services.
If the service is not registered yet, add the PAIS 3.0 Supervisor Service definition. In this lab the definition was pais-3.0.0.yml.
Use Actions > Manage Service.
Select the Supervisor used by the region.
Enable/deploy the service.
Wait for the PAIS service controller and package reconciliation to complete.

Checkpoint: do not create the actual PAIS configuration while the Supervisor Service itself is still reconciling.

Part 5 – Create the Namespace That Will Host PAIS

Step 10 – Create the Namespace

Log in to the VCF Automation organization.
Open Build & Design > Projects.
Open the project that should host PAIS.
Open the Namespaces tab.
Click NEW NAMESPACE.
Enter the following values:

Field	Value
Name	`vcf-pais-gmtqg`
Namespace Class	`pais-large`
Region	`test-region-auto`
Service Engine Group	`se-namespace-test`
VPC	`vpc-vcf-pais-72x7u8`
VPC CIDR	`172.55.0.0/24`
Private TGW Block	`pais-tgw / 172.60.0.0/16`
Connectivity Profile	`pais-connectivity-profile`
External SNAT Block	`external-app`

Review the summary.
Click CREATE.
Wait until the namespace becomes Ready.

Checkpoint: before continuing, confirm that the namespace sees the correct Storage Class, best-effort-xlarge, and small-gpu.

Part 6 – Configure PAIS Itself

Step 11 – Open Private AI Services in the Namespace

Open vcf-pais-gmtqg.
Open the services available to the namespace.
Select Private AI Services.
Start the configuration wizard.

Step 12 – Select Model Runtime Only

PAIS can expose more than a simple inference runtime, but for this guide, our goal is to host a local LLM. Select:

Service Capability: Model Runtime Only

This is reflected later in the generated configuration, where Agent Builder and Indexing are disabled.

Step 13 – Configure Storage and the VKS Control Plane

Field	Value
Default Storage Class	`vworld-cl01-optimal-datastore-default-policy-autoraid`
VKS Control Plane VM Class	`best-effort-xlarge`

This is an important place to avoid a common conceptual mistake: do not select the GPU class for the control plane.

Step 14 – Configure Local Authentication

Enable the local-user authentication option.
Create the local PAIS user for the lab.
Use the FQDN that will later point to the PAIS ingress:

https://vcf-pais.vcf.vworld.lab

Step 15 – Configure the NVIDIA Runtime

Open the GPU configuration section.
Select GPU passthrough / DirectPath mode.
Select OSS as the GPU driver type.
The final configuration in this lab uses NVIDIA GPU Operator 25.10.1.

Step 16 – Deploy PAIS

Before submitting the wizard, the important values should be:

Capability:         Model Runtime Only
Storage Class:      vworld-cl01-optimal-datastore-default-policy-autoraid
VKS VM Class:       best-effort-xlarge
GPU Driver Type:    OSS
Authentication:     Local User
Ingress:            LoadBalancer

Click DEPLOY / FINISH.

Now give PAIS time to create its VKS control plane and platform services.

Checkpoint:

PAISConfiguration/default
Ready=True
reason=paisAvailable

Figure 4. Final PAIS Service Configuration. PAIS reports Ready (paisAvailable), uses best-effort-xlarge for the VKS control plane, and exposes the ingress on 40.40.40.2.

What Did PAIS Just Create?

This is the part I always like to verify because it shows how much automation is hidden behind one wizard.

After PAIS becomes Ready, the platform has created or configured:

a PAISConfiguration object,
a PAIS-managed VKS cluster,
load-balanced PAIS services,
the NVIDIA GPU Operator configuration,
runtime credentials and service accounts,
the storage and network plumbing required for future ModelEndpoints.

Step 17 – Verify the Avi Virtual Services

Open Avi and verify the new load-balanced services.

PAIS Ingress:  40.40.40.2:443
VKS API:       40.40.40.3:6443
Harbor:        192.168.51.7:443

Figure 5. Avi Virtual Services after PAIS deployment, including Regional Harbor, the PAIS-managed VKS API and PAIS ingress.

Part 7 – Give PAIS a DNS Name and an API Token

Step 18 – Create the DNS Record

Create:

vcf-pais.vcf.vworld.lab -> 40.40.40.2

Verify:

nslookup vcf-pais.vcf.vworld.lab

Step 19 – Configure the PAIS FQDN

Now make sure the PAIS configuration uses that FQDN as its endpoint/issuer URL. In the final lab configuration, the issuer is:

https://vcf-pais.vcf.vworld.lab

You can verify the resulting configuration from the Supervisor:

kubectl get paisconfiguration default \
  -n vcf-pais-gmtqg \
  -o yaml

Look for the configured authentication provider and issuer URL.

Step 20 – Configure Long-Lived API Tokens for the Lab

For the persistent VCF Operations integration, I configured:

expirationDefault = 8760h
expirationMax     = 8760h

That gives the lab a one-year token lifetime. This is convenient for a private test environment; production values should match your security requirements.

Step 21 – Generate the Token

Open https://vcf-pais.vcf.vworld.lab.
Log in using the local PAIS user.
Open the user menu.
Open API Tokens.
Create a token.
Copy it and store it securely.

Figure 6. PAIS User Access with the local account and the configured issuer URL.

Part 8 – Prepare Regional Harbor as the Model Store

Step 22 – Verify Regional Harbor

In this environment, the model registry is the Regional Harbor created by VCF Automation:

VIP:             192.168.51.7:443
Namespace:       svc-harbor-yzt43
Authentication:  db_auth
Project:         models
Visibility:      public

Open Harbor and verify that the models project exists.

Figure 7. Avi topology for the kube-system DNS LoadBalancer used by the PAIS infrastructure.

Step 23 – Trust the Harbor CA on the Tools VM

My tools VM is Rocky Linux. Copy the Harbor CA to the VM and add it to both the OS and Docker trust stores:

sudo cp harbor-ca.crt \
  /etc/pki/ca-trust/source/anchors/harbor-ca.crt

sudo update-ca-trust

sudo mkdir -p /etc/docker/certs.d/192.168.51.7

sudo cp harbor-ca.crt \
  /etc/docker/certs.d/192.168.51.7/ca.crt

Step 24 – Test Harbor Before Uploading Anything

curl https://192.168.51.7/v2/

An HTTP 401 Unauthorized without credentials is actually the expected result. It means TLS works, Harbor is reachable, and the registry is waiting for authentication.

Part 9 – Download Qwen2.5-7B-Instruct

Step 25 – Check Disk Space

Do this before downloading the model:

df -h

Qwen is much larger than a tiny smoke-test model. In my tools VM, /home was expanded to roughly 108 GB, with about 90 GB free before the final model workflow.

Step 26 – Download Qwen from Hugging Face

mkdir -p ~/pais/models/Qwen2.5-7B-Instruct

hf download \
  Qwen/Qwen2.5-7B-Instruct \
  --local-dir ~/pais/models/Qwen2.5-7B-Instruct

cd ~/pais/models/Qwen2.5-7B-Instruct

Verify the local content:

du -sh .
ls -lah

Part 10 – Convert the Local Model into a PAIS Model Artifact

Step 27 – Log in to the Harbor Model Store

vcf pais models repo login 192.168.51.7 \
  --username admin \
  --ca-cert-path ~/pais/certs/harbor-ca.crt

Step 28 – Push Qwen

Use a lowercase repository/model name:

vcf pais models push \
  --modelStore 192.168.51.7/models \
  --modelName qwen/qwen2.5-7b-instruct \
  --tag v2

The final model reference used by PAIS is:

192.168.51.7/models/qwen/qwen2.5-7b-instruct:v2

The correct Qwen artifact in the lab is approximately:

Tag:     v2
Size:    ~14.20 GiB
Layers:  42

Step 29 – Add Harbor CA Trust to PAIS

Return to the PAIS UI.
Open CA Trust Bundles.
Create a bundle named harbor.
Add the Regional Harbor CA certificate.
Save the configuration.
Wait until PAIS returns to Ready state.

Checkpoint: PAIS must trust Harbor before the ModelEndpoint worker can download the model.

Part 11 – Deploy Qwen2.5-7B-Instruct

Step 30 – Open Model Runtime

Open the PAIS service in vcf-pais-gmtqg.
Open the Model Runtime tab.
Click NEW MODEL ENDPOINT.

Step 31 – Configure the Model Identity

Field	Value
Model URL	`192.168.51.7/models/qwen/qwen2.5-7b-instruct`
Image Tag	`v2`
Routing Name	`qwen2.5-7b-instruct`
Display Name	`qwen2.5-7b-instruct`
Model Type	Completions
Engine	vLLM

The Routing Name is especially important because clients will use it to address the model through the API.

Step 32 – Configure the GPU Worker

Field	Value
VM Class Type	GPU
VM Class	`small-gpu`
Instances	1
Storage Class	`vworld-cl01-optimal-datastore-default-policy-autoraid`
Registry Secret	Empty in this lab because the Harbor project is public

Step 33 – Enable vLLM Tool Calling

This is one of the most important details in the entire Qwen configuration.

Enable Advanced Customization and add:

--enable-auto-tool-choice
--tool-call-parser=hermes

Why? Because VMware Intelligent Assist asks the LLM for natural-language text. The model must also participate in tool-oriented workflows. These vLLM options enable the Qwen runtime to support that behavior.

Figure 8. Qwen2.5-7B-Instruct ModelEndpoint configuration with Advanced Customization enabled.

Step 34 – Review and Deploy

Before clicking Deploy, verify:

Model:
192.168.51.7/models/qwen/qwen2.5-7b-instruct:v2

Engine:
vLLM

Worker:
small-gpu

Instances:
1

Arguments:
--enable-auto-tool-choice
--tool-call-parser=hermes

Click DEPLOY.

Figure 9. Final review of the Qwen ModelEndpoint: Qwen v2, vLLM, small-gpu and tool-calling arguments.

The endpoint will initially be Pending. That is expected.

Figure 10. The Qwen ModelEndpoint while PAIS creates and prepares the dedicated GPU worker.

What Happens Behind the Scenes When You Click Deploy?

This is where PAIS becomes really interesting.

A ModelEndpoint deployment does not simply start a container on an existing node. PAIS orchestrates a chain of platform actions:

Cluster API creates an inference-worker Machine.
VM Operator creates the corresponding VM.
The VM uses the small-gpu class.
Dynamic DirectPath I/O attaches the physical NVIDIA GPU.
NVIDIA GPU Operator prepares the node.
Storage is attached.
The model artifact is downloaded from Regional Harbor.
The vLLM runtime is started.
The model is exposed through the PAIS API layer.

That is a lot of infrastructure hidden behind one ModelEndpoint wizard.

Part 12 – Verify the GPU Worker Instead of Just Waiting for the UI

Step 35 – Connect to the PAIS-managed VKS Cluster

export KUBECONFIG=/tmp/pais-vks-kubeconfig

kubectl get nodes -o wide
kubectl get pods -A -o wide

You should eventually see a dedicated worker created for Qwen.

Step 36 – Confirm Kubernetes Can See the GPU

kubectl get node <qwen-gpu-node> -o json | jq '{
  capacity: .status.capacity["nvidia.com/gpu"],
  allocatable: .status.allocatable["nvidia.com/gpu"]
}'

Expected:

{
  "capacity": "1",
  "allocatable": "1"
}

This is the point where we know that the GPU is not only attached to the VM, but also advertised as a Kubernetes schedulable resource.

Step 37 – Verify the ModelEndpoint from the Supervisor

kubectl get paisconfiguration default \
  -n vcf-pais-gmtqg \
  -o json | jq '.status.conditions'

kubectl get modelendpoints \
  -n vcf-pais-gmtqg

kubectl get modelendpoint <qwen-endpoint-name> \
  -n vcf-pais-gmtqg \
  -o json | jq '.status'

You can also inspect what PAIS created underneath:

kubectl get machines.cluster.x-k8s.io \
  -n vcf-pais-gmtqg \
  -o wide

kubectl get virtualmachines \
  -n vcf-pais-gmtqg \
  -o wide

Checkpoint: do not continue until the ModelEndpoint becomes Available.

Part 13 – Test PAIS Before Involving VCF Operations

This is an important troubleshooting habit: first prove the model works through PAIS itself. Only then add VCF Operations.

Step 38 – Export the API Token

export PAIS_API_KEY='<your-api-token>'

Step 39 – List the Available Models

curl -k \
  "https://vcf-pais.vcf.vworld.lab/api/v1/compatibility/openai/v1/models" \
  -H "Authorization: Bearer $PAIS_API_KEY" \
  -H "Content-Type: application/json"
